安装k8s集群

简介


配置密钥免密登录

生成秘钥对

1

ssh-keygen -t rsa

复制公钥到子节点服务器

1

ssh-copy-id root@10.0.0.201

可以使用sshpass工具以非交互式方式配置，省去了每次都要输入密码的烦恼。

1

dnf install sshpass -y

然后使用：

1

sshpass -p "123123" ssh-copy-id root@10.0.0.201

主子节点互通

规划主机名

序号 主机IP 主机名规划
1 10.0.0.200 master
2 10.0.0.201 node1
3 10.0.0.202 node2
4 10.0.0.203 node3
5 10.0.0.210 register
1

hostnamectl set-hostname master

配置主机名

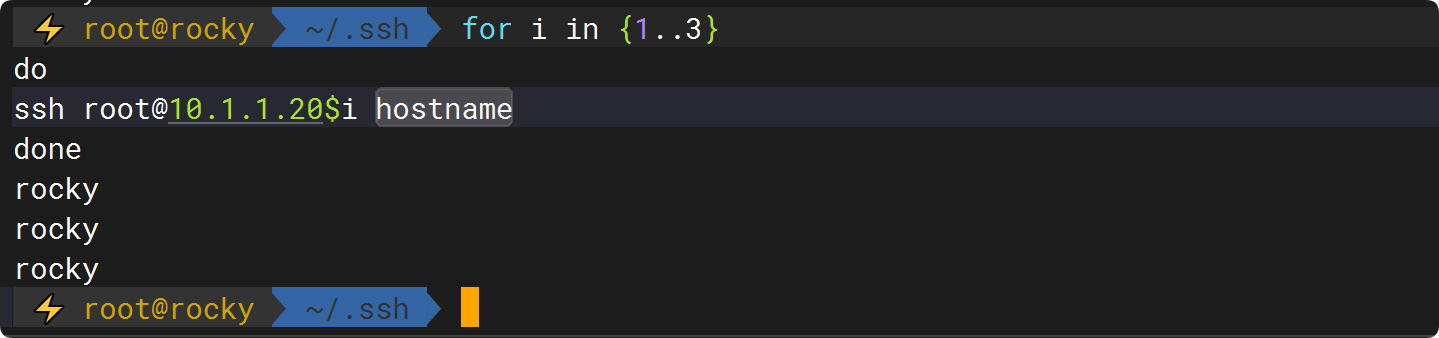

先看一下原来的：

QQ_1733319583914

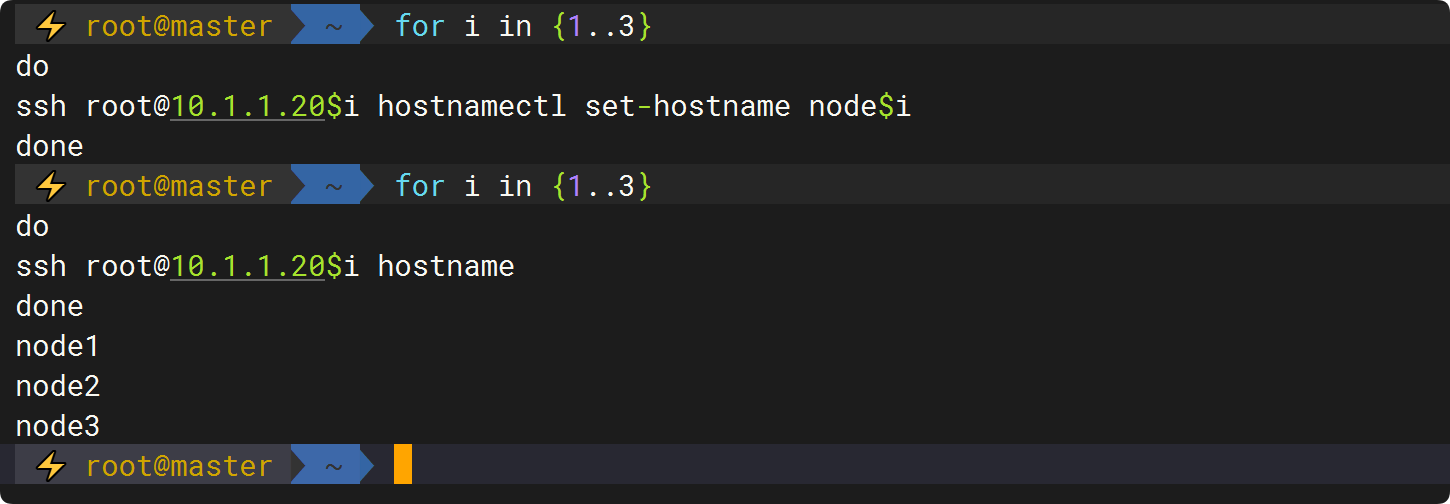

使用hostnamectl set-hostname修改主节点和子节点

修改后的：

QQ_1733319766780

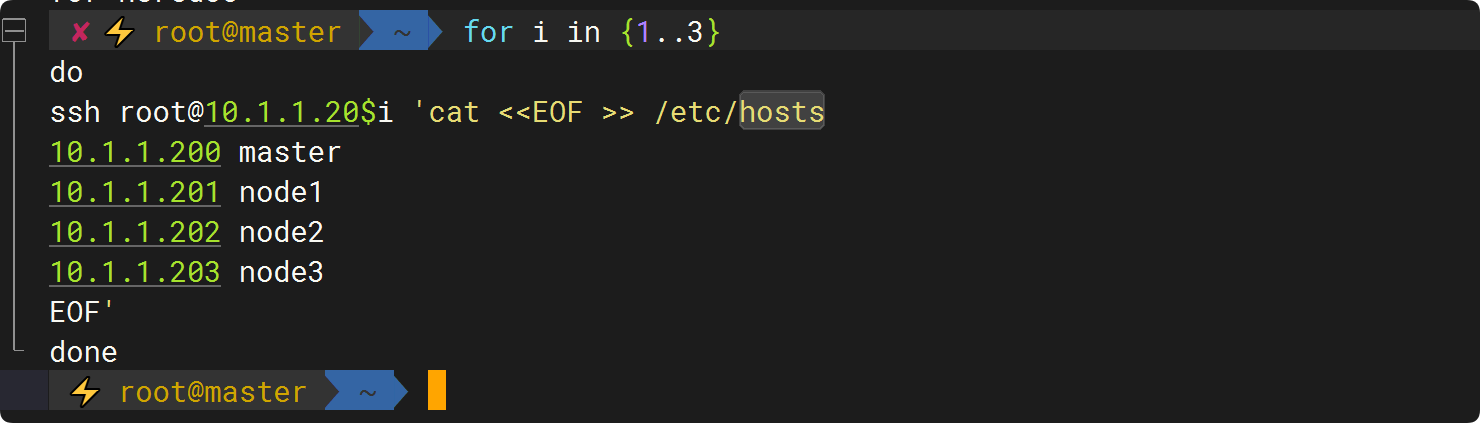

配置host解析

1
2
3
4
5
6
7
8
9

for i in {1..3}
do
ssh root@10.1.1.20$i 'cat <<EOF >> /etc/hosts
10.1.1.200 master
10.1.1.201 node1
10.1.1.202 node2
10.1.1.203 node3
EOF'
done

QQ_1733320554968

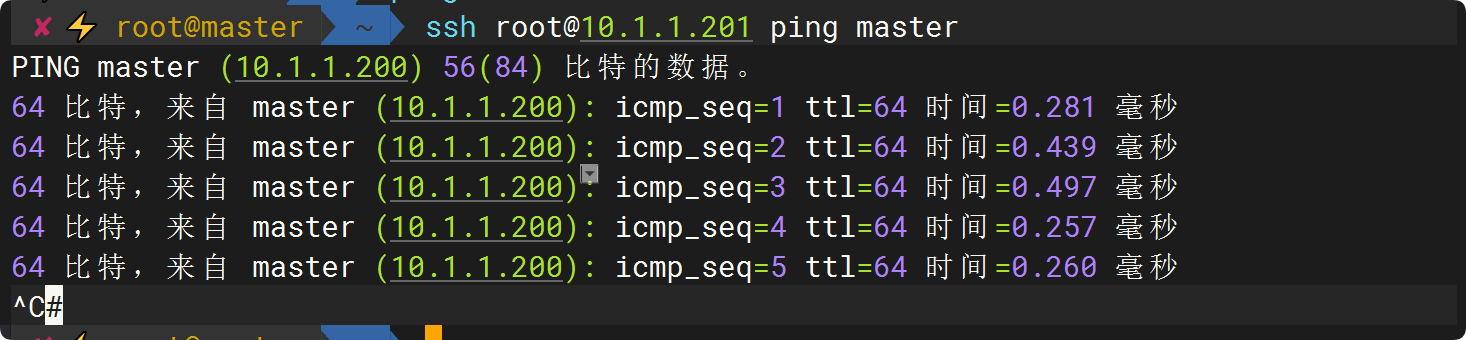

然后使用子节点ping主节点：

QQ_1733320608536

1

yum install -y yum-utils device-mapper-persistent-data lvm2

系统配置

永久关闭selinux

1

sed -i 's/.*SELINUX=.*/SELINUX=disabled/' /etc/selinux/config

关闭swap(所有主机操作)

临时禁用使用：swapoff -a

1

sed -i 's/.*swap.*/#&/' /etc/fstab

开放防火墙

主节点机器

1
2
3
4
5
6
7
8

sudo firewall-cmd --permanent --add-port=6443/tcp
sudo firewall-cmd --permanent --add-port=2379-2380/tcp
sudo firewall-cmd --permanent --add-port=10250/tcp
sudo firewall-cmd --permanent --add-port=10251/tcp
sudo firewall-cmd --permanent --add-port=10259/tcp
sudo firewall-cmd --permanent --add-port=10257/tcp
sudo firewall-cmd --permanent --add-port=179/tcp
sudo firewall-cmd --permanent --add-port=4789/udp

1

sudo firewall-cmd --reload

子节点

1
2
3
4

sudo firewall-cmd --permanent --add-port=179/tcp
sudo firewall-cmd --permanent --add-port=10250/tcp
sudo firewall-cmd --permanent --add-port=30000-32767/tcp
sudo firewall-cmd --permanent --add-port=4789/udp

1

sudo firewall-cmd --reload

网络参数调整


配置 iptables 参数，使得流经网桥的流量也经过 iptables/netfilter 防火墙：

1
2
3
4
5

cat >> /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
net.ipv4.ip_forward = 1
EOF

执行以下命令使配置生效：

1
2
3

modprobe br_netfilter
modprobe overlay
sysctl -p /etc/sysctl.d/k8s.conf

安装CRI环境（所有主机操作）

CRI-O

1
2
3
4
5
6
7
8

cat <<EOF | sudo tee /etc/yum.repos.d/cri-o.repo
[cri-o]
name=CRI-O
baseurl=https://pkgs.k8s.io/addons:/cri-o:/prerelease:/main/rpm/
enabled=1
gpgcheck=1
gpgkey=https://pkgs.k8s.io/addons:/cri-o:/prerelease:/main/rpm/repodata/repomd.xml.key
EOF

1

sudo dnf install cri-o -y

安装kubernetes(all)

1
2
3
4
5
6
7
8

cat <<EOF | tee /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.28/rpm/
enabled=1
gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes-new/core/stable/v1.28/rpm/repodata/repomd.xml.key
EOF

1
2

yum install -y kubelet kubeadm kubectl
systemctl enable kubelet && systemctl start kubelet

初始化集群

主节点初始化

1
2
3
4
5
6

kubeadm init --kubernetes-version=1.28.15 \
--apiserver-advertise-address=10.1.1.200 \
--service-cidr=10.96.0.0/12 \
--pod-network-cidr=10.244.0.0/16 \
--ignore-preflight-errors=Swap \
--cri-socket=unix:///var/run/crio/crio.sock

子节点加入

1
2
3

kubeadm join 10.1.1.200:6443 --token k20g6d.xopyi08bg9ysgb09 \
        --discovery-token-ca-cert-hash sha256:8ef65a50cc9b5ad13f7c900fa70d0f95228a5b9c2f5e187bbf2137e72472d197 \
        --cri-socket=unix:///var/run/cri-dockerd.sock

配置kubectl(master)

1
2
3

mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config

配置网络插件(master)

1

wget https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml && kubectl apply -f kube-flannel.yml

QQ_1733404257138

验证是否启动成功：

1
2
3
4
5
6

/opt/etcd/bin/etcdctl \
--cacert=ca.pem \
--cert=server.pem \
--key=server-key.pem \
--endpoints="https://192.168.146.130:2379,https://192.168.146.142:2379,https://192.168.146.139:2379" \
put /coreos.com/network/config '{ "Network": "172.17.0.0/16", "Backend": {"Type": "vxlan"}}'

节点安装docker

1

yum install docker-ce -y

修改docker的启动配置：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
EnvironmentFile=/run/flannel/subnet.env
ExecStart=/usr/bin/dockerd $DOCKER_NETWORK_OPTIONS
ExecReload=/bin/kill -s HUP $MAINPID
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
TimeoutStartSec=0
Delegate=yes
KillMode=process
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target

开启：modprobe br_netfilter

然后启动flannel后重启docker

api-server组件

证书

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63

[root@master1 k8s]# cat ca-csr.json
{
  "CN": "Kubernetes",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "US",
      "L": "Portland",
      "O": "Kubernetes",
      "OU": "CA",
      "ST": "Oregon"
    }
  ]
}
[root@master1 k8s]# cat ca-csr.json
{
  "CN": "Kubernetes",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "US",
      "L": "Portland",
      "O": "Kubernetes",
      "OU": "CA",
      "ST": "Oregon"
    }
  ]
}
[root@master1 k8s]# cat server-csr.json
{
  "CN": "kubernetes",
  "hosts": [
    "10.0.0.1",
    "127.0.0.1",
    "192.168.146.130",
    "192.168.146.142",
    "192.168.146.139",
    "kubernetes",
    "kubernetes.default",
    "kubernetes.default.svc",
    "kubernetes.default.svc.cluster",
    "kubernetes.default.svc.cluster.local"
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "US",
      "L": "Portland",
      "O": "Kubernetes",
      "OU": "Kubernetes The Hard Way",
      "ST": "Oregon"
    }
  ]
}
